Meter Seal "ConnectionLock DN20+" (3/4")

Price:
from 0,35 EUR
(19 % VAT incl. excl. Shipping costs)
Product options:
Shipping time: 4-5 business days

Meter Seal "ConnectionLock DN20+" (3/4")

Product no.: S312
The meter connection seal „ConnectionLock“ is an easy and secure measure for prevention in manipulations of gas meters, water meters……

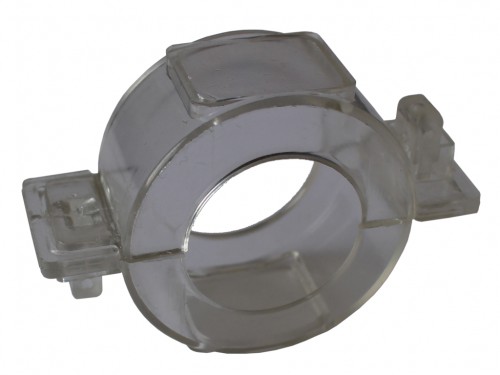

The connectionLock consists of two identical half-shells, made of polycarbonate (PC). The two-shells are simply plugged together on the connection nut. A special lock prevents accidental opening of the ConnectionLock. In addition the ConnectionLock can be secured for example with a sealing wire and lead seals.

The connectionLock is available in different sizes: DN20, DN20+, DN25 and DN40

Technical Data:
  • Material: Polycarbonate (PC)
  • Nominal diameter: DN20+ (3/4")

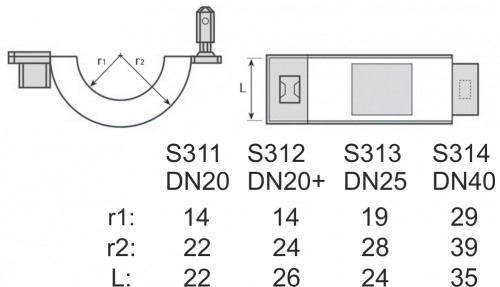

  • Radius r1: 14 mm (see figure)
  • Radius r2: 24 mm (see figure)
  • Interior width L: 26 mm (see figure)
  • Colour: transparent

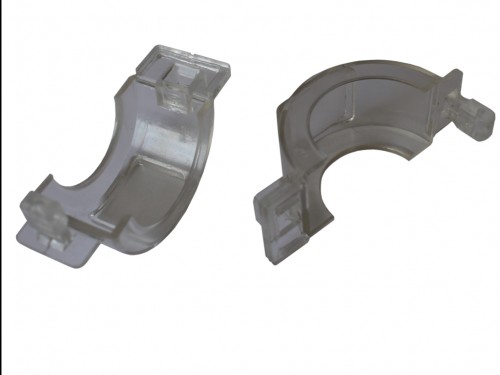

  • Delivery includes: 2 snap-together half-sheels
